| 구 분 |

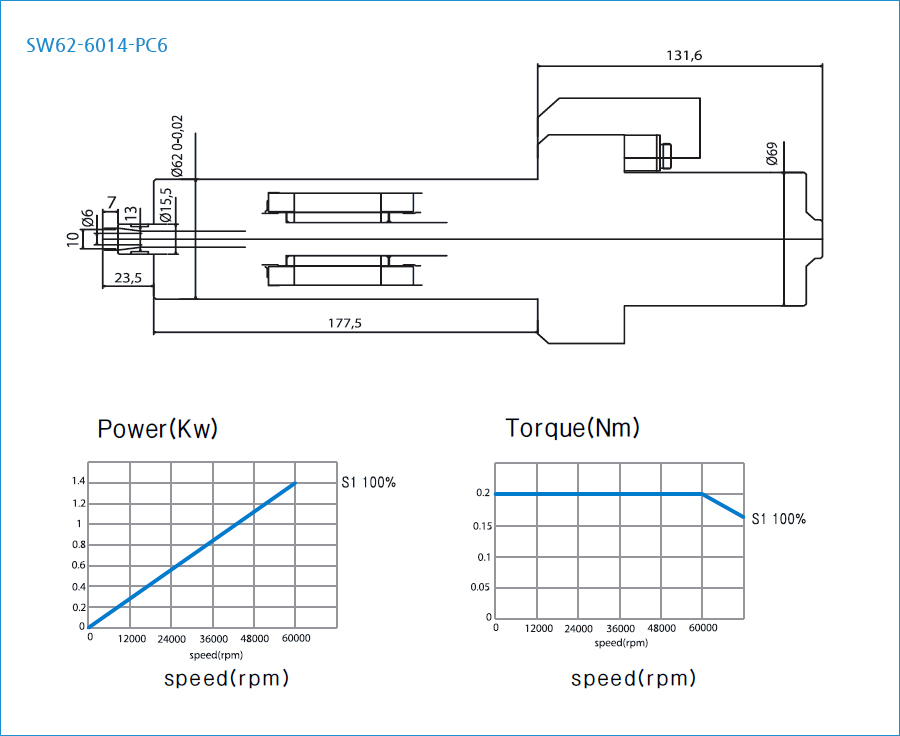

SW62-6014-PC6 |
SW80-1205-S |
SW80-1613-S |
SW80-3033-S |
| Housing diameter(Ø) |
62 |
80 |
80 |
80 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
1.4 |
0.5 |
1.3 |
3.3 |
| Speed(rpm) |
60,000 |
12,000 |
16,000 |
30,000 |
| Frequency(Hz) |
1,000 |
400 |
533 |
1,000 |
| Torque(Nm) |
0.2 |
0.41 |
1 |
1.1 |
| Current(A) |
5.2 |
3 |
5 |
13.1 |
| Motor poles |
2 |
4 |
4 |
4 |
| Tool change |
auto |
manual |
manual |
manual |
| Tool interface |
PC6 |
straight |
straight |
straight |
| option |
× |
× |
× |
× |
| Cooling system |
water / oil |
air |
water / oil |
water / oil |
| Bearing lubrication |
grease |
grease |
grease |
grease |
| Weight(kg) |
5 |
6.5 |
6.5 |
6.5 |
|
