| 구 분 |

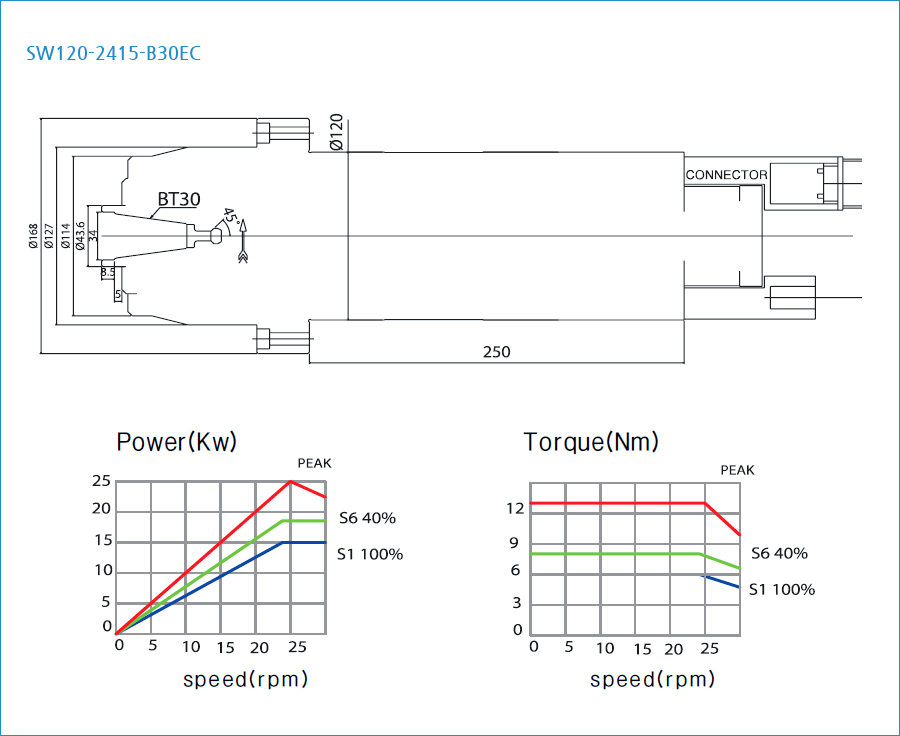

SW120-2415-BT30EC |
SW140-2412-BBT40 |
SW140-2425-H50A |
SW150-3618-SO |
| Housing diameter(Ø) |
120 |
140 |
140 |
150 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
15 |
12.5 |
25 |
18 |
| Speed(rpm) |
24,000 |
24,000 |
24,000 |
36,000 |
| Frequency(Hz) |
800 |
800 |
800 |
1,200 |
| Torque(Nm) |
6.6 |
10.1 |
10 |
7.27 |
| Current(A) |
28 |
26 |
53 |
36.7 |
| Motor poles |
4 |
4 |
4 |
4 |
| Tool change |
auto |
auto |
auto |
manual |
| Tool interface |
BT30 |
BBT40 |
HSK A50 |
straight |
| Tool clamping force(nmax) |
6,000 |
12,000 |
11,000 |
|
| option |
Encoder |
× |
× |
oil-mist system |
| Cooling system |
water / oil |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
grease |
grease |
oil-mist |
| Weight(kg) |
30 |
40 |
40 |
45 |
|
