| 조각, 디버링, 밀링, 드릴링, 탭핑 등 공작기계용 스핀들 |
홈 > 제품소개 > 공작기계용 스핀들 |
|
|
|
| |
본문
| |
| SW150-2412-BT40 |
|
 |
|
|
| SW150-3612-H40AECO |
|
 |
|
|

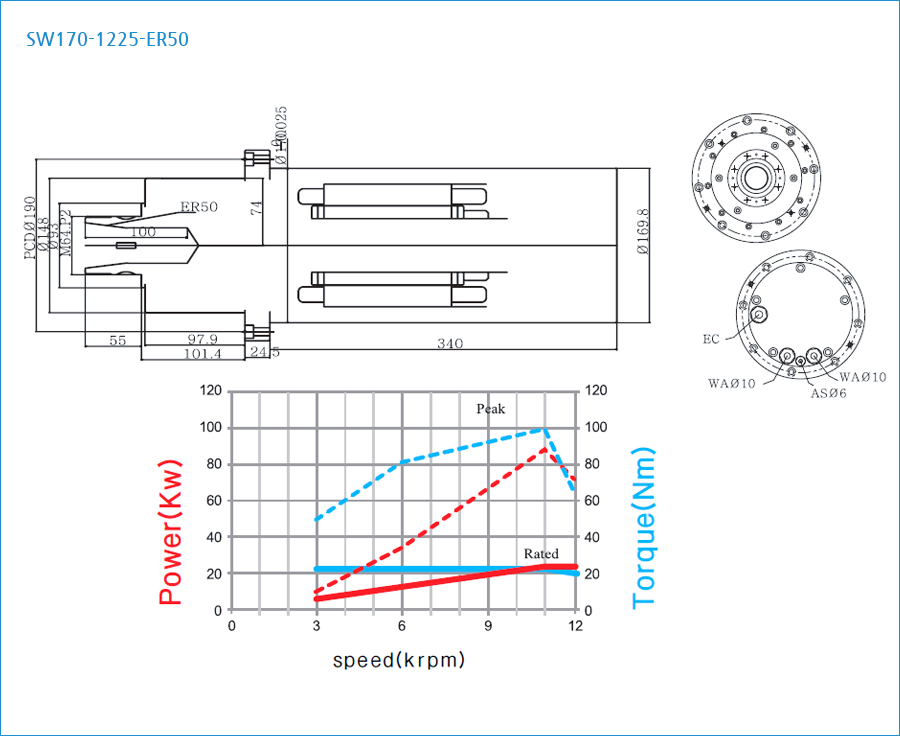

| SW170-1225-ER50 |
|
 |
|
|
| SW170-2425-SECO |
|
 |
|
|
|
| |
|
| 구 분 |
SW150-2412-BT40 |
SW150-3612-H40AECO |
SW170-1225-ER50 |
SW170-2425-SECO |
| Housing diameter(Ø) |
150 |
150 |
170 |
170 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
12.512 |
12 |
25 |
25 |
| Speed(rpm) |
24,000 |
36,000 |
12,000 |
24,000 |
| Frequency(Hz) |
800 |
1,200 |
400 |
800 |
| Torque(Nm) |
6.3 |
3 |
19.8 |
22.1 |
| Current(A) |
24 |
30 |
48 |
54 |
| Motor poles |
4 |
4 |
4 |
4 |
| Tool change |
auto |
auto |
manual |
manual |
| Tool interface |
BT40 |
HSK A40 |
ER 50 |
straight |
| Tool clamping force(nmax) |
|
6,800 |
|
|
| option |
× |
Encoder, oil-mist system |
× |
oil-mist system, Encoder |
| Cooling system |
water / oil |
water / oil |
water |
water / oil |
| Bearing lubrication |
grease |
oil-mist |
grease |
oil-mist |
| Weight(kg) |
50 |
50 |
68 |
65 |
|
| |
|
 |
|
| |
|
|
